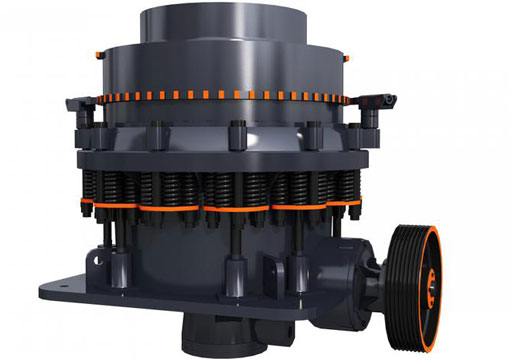

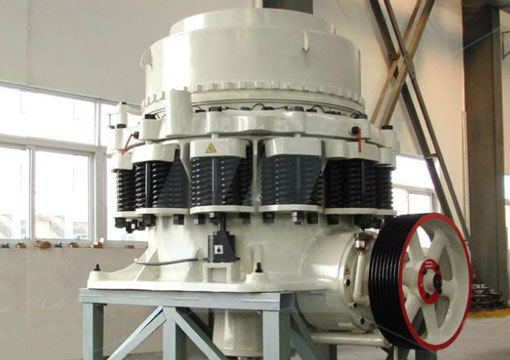

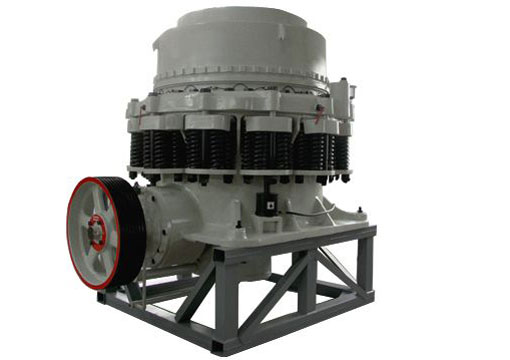

Simmons cone crusher series bronze accessories
Simmons cone crusher series bronze accessories

Simmons cone crusher series bronze accessories

Casting process:Centrifugal casting, sand casting, metal casting
Application:Mining, coal mining, machinery industry
Surface finish:Customisation
Material:Customised bronze alloys
Share :
Product Description
Parameters
Application Scenario
Related Products
Product Description

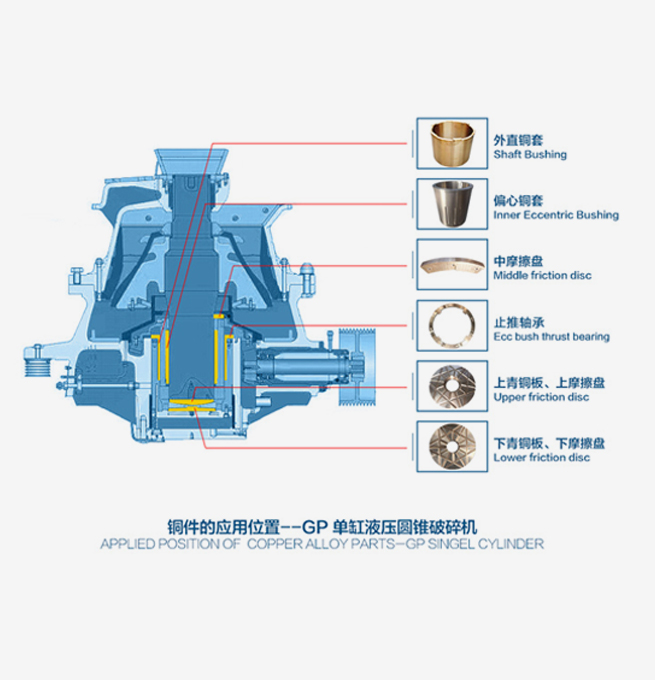

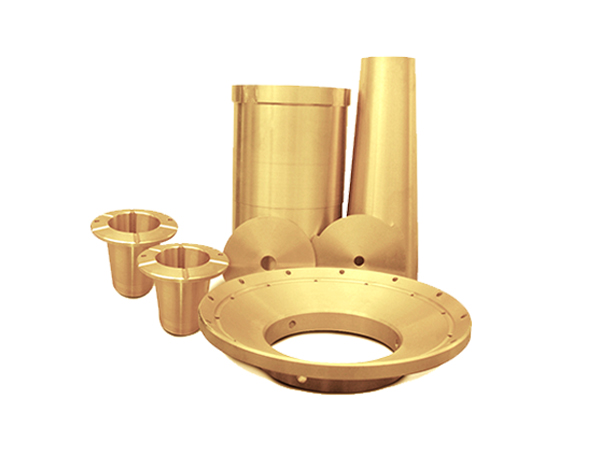

The bronze sleeve of the Simmons cone crusher includes:
Bowl type bearing, frame bushing, main shaft bushing, thrust plate, transmission bearing.
Bowl shaped tile:Also known as bowl type bearing sleeve, bowl type bearing bush, bronze tile, bronze basin, bowl type bronze, etc. It is installed between the bowl shaped tile frame and the body. The contact surface between the body and the bowl shaped tile is spherical. The body is also provided with two spherical rings on the outside of the spherical surface, and a sealing ring is also provided between the body and the bowl shaped frame.
Spindle bushing:Also known as bushing, shaft sleeve, inner sleeve, inner sleeve tapered bushing, tapered bronze sleeve, inner bronze, etc. Due to its tapered appearance, it is also known as a tapered sleeve. The tapered bronze sleeve is suitable for the spindle part of spring type and Simmons type cone crushers. It is installed outside the shaft to protect the shaft.
Bushing:Also known as straight bronze sleeve, outer bronze sleeve, outer bronze, outer sleeve, bushing, frame bronze sleeve, etc. Installed inside the main frame to protect the frame.
Thrust plate:Also known as disk, thrust plate, and lower thrust plate, the thrust bearing plate supports the empty eccentric shaft, reducing the running resistance of the empty eccentric shaft. At the same time, the accuracy of its installation directly affects the meshing clearance of the bevel gear, ensuring a reasonable fit clearance between the empty eccentric shaft sleeve and the main shaft, and avoiding the occurrence of "runaway" phenomenon.
Transmission shaft sleeve:Also known as pulley bronze sleeve, horizontal sleeve is installed at both ends of the transmission shaft of the crusher to drive the shaft to rotate.
Introduction Of Relevant Parameters
The Structure Of Self-Lubricating Wear-Resistant Bronze Bushing Is Very Simple, That Is, Punching Holes In The Bronze Bushing Substrate
Casting process Centrifugal casting, sand casting, metal casting
Application Mining, coal mining, machinery industry
Surface finish Customisation
Material Customised bronze alloys
Product Application Scenarios
The Structure Of Self-Lubricating Wear-Resistant Bronze Bushing Is Very Simple, That Is, Punching Holes In The Bronze Bushing Substrate
Application Scenarios
Application Scenarios
Application Scenarios
Quick Question And Answer
Bronze Bushing, Bronze Liner, Bronze Slide, Bronze Nut, Bronze Worm Gear, Bronze Slider And Other Bronze Alloy
Do you have requirements on quantity?
We can provide the quantity of drawings according to the customer, because there is a price advantage when there is a quantity, precisely because the quantity is mostly superior.
What material of copper do you have the most wear-resistant?
Also according to the customer with the frequency, performance, environment and other conditions to determine, generally we are recommended 555 such material.
Can we finish and deliver in a week?
Yes, there is no problem at all; the deadline is decided by the customer!
What kind of casting process can your company do?
Our company has many years of experience in casting machinery processing, with sand casting, centrifugal casting, metal casting, investment casting and other casting processes.
What are the commonly used materials?
Frequently made materials include: brass, tin bronze, lead bronze, aluminium bronze, phosphor bronze.
What kind of packaging do you use?
Depends on whether you are exporting or not, all export packaging is made of 15nm thickened non-fumigation boards, the domestic standard packaging is 10mm thin non-fumigation boards, the legs are solid wood, the domestic simple packaging is a cardboard box or grass rope winding.
What is your after-sales service commitment?
Our after-sales service commitment, the spot is shipped at that time, expedited 3 days delivery, normal about 20 days delivery, bulk about 20-30 days delivery, to ensure that the material, to ensure that the size, any problem free replacement or unconditional refund.
Customers want to expedite?
Our company's normal working period is 30 days, if you have special requirements, we can also discuss with the factory, with the time off work to expedite processing, expedited costs to talk to the customer. Depending on the circumstances of the expedited cost.
